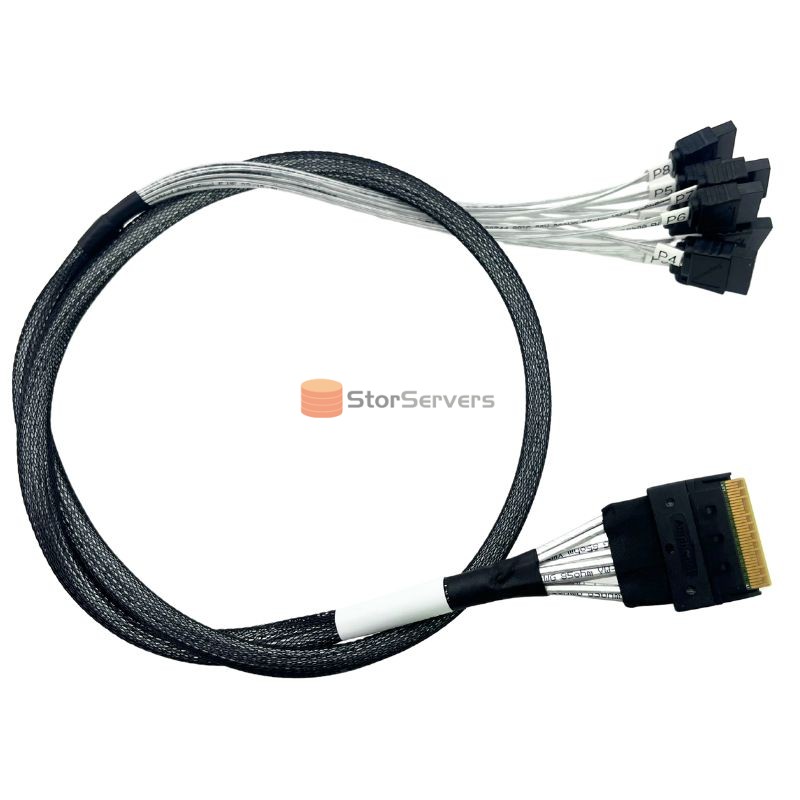

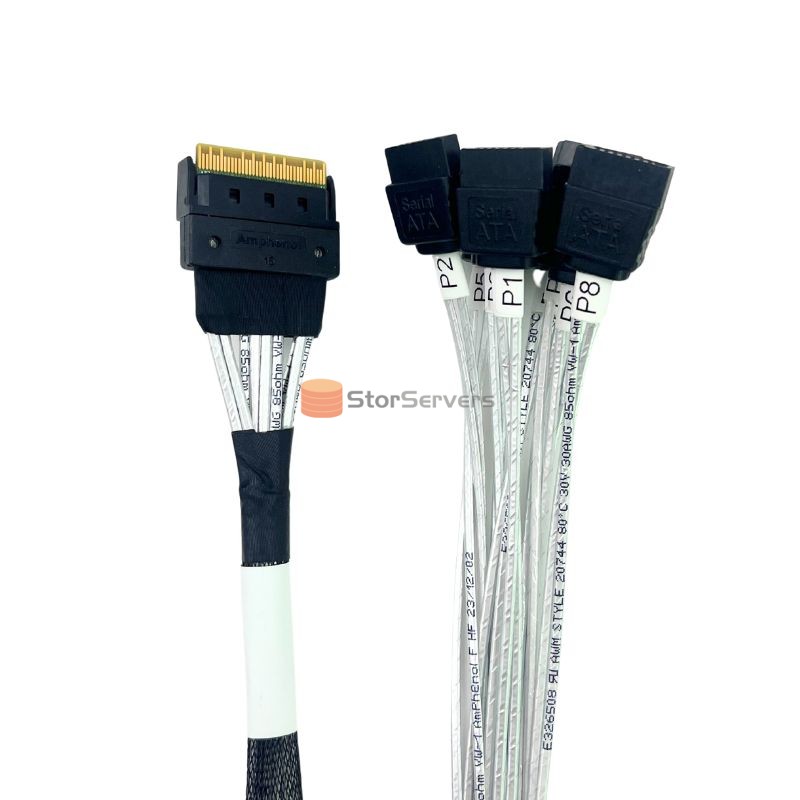

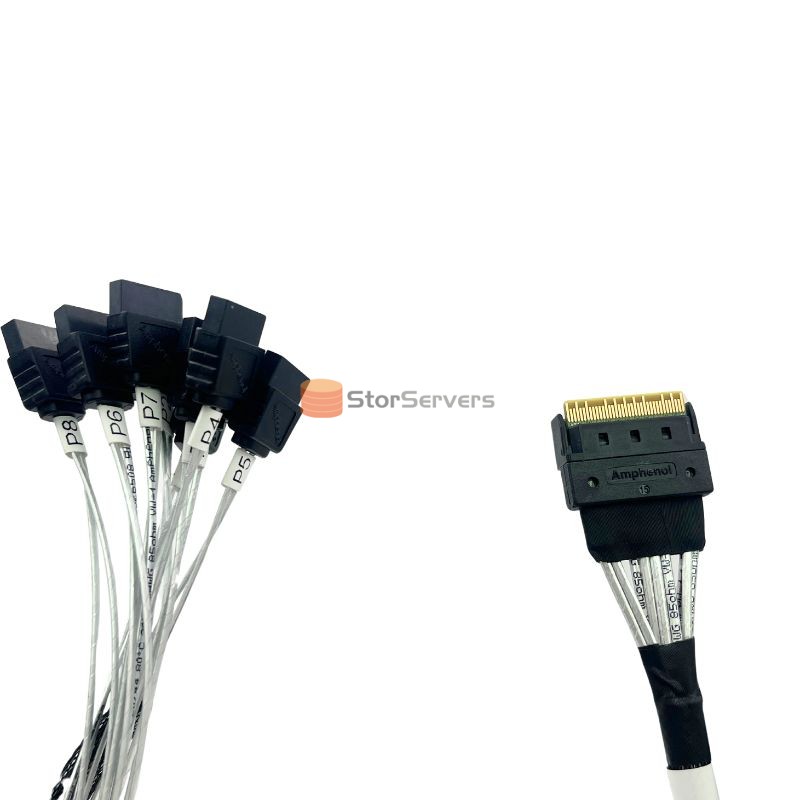

Data cable SFF 8654 8x to SATAx8
Applications
1、 Interface definition: Host side: SFF-8654 8x (SlimSAS 8i), 74 pin, Low Profile (approximately 6.5mm high). Device end: 8 x SATA 7pin (data), capable of straight head/90 ° bend. Locking: SFF-8654 shrapnel lock; SATA standard buckle. 2、 Bandwidth and Protocol: Single channel speed: SAS 4.0 24Gbps/PCIe 4.0 32Gbps. SATA end: 6Gbps per port (SATA 3.0), backward compatible with SATA 2/1. Total bandwidth: 8 × 6Gbps=48Gbps (bidirectional). Protocol compatibility: SAS 3.0/4.0, PCIe 3.0/4.0, SATA 3.0 (controller needs to support SAS → SATA mapping). 3、 Typical application: Connect LSI 9400/9500, Broadcom HBA/RAID card (SFF-8654 8x port). 1U/2U server → 8-disk SATA hard drive/backplane. High density storage JBOD, SlimSAS interface expands SATA capacity.
Key Features
- SAS 4.0/PCIe 4.0 passive conversion cable, single port SlimSAS divided into 8 SATA channels
- Host end: SFF-8654 8x (SlimSAS 8i), 74pin, Low Profile (approximately 6.5mm high)

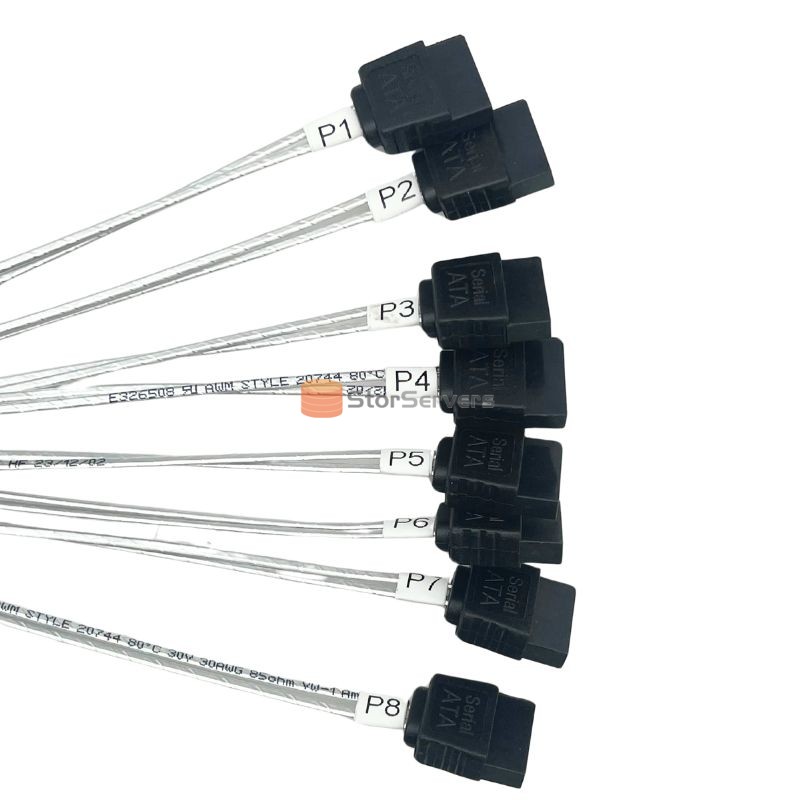

- Device end: 8 x SATA 7pin (data), capable of straight head/90 ° bend
- Locking: SFF-8654 shrapnel lock; SATA standard buckle
- Single channel speed: SAS 4.0 24Gbps/PCIe 4.0 32Gbps
- SATA end: 6Gbps per port (SATA 3.0), backward compatible with SATA 2/1
Specification
| Model |
SFF 8654 8x to SATAx8 |
| Host end : |
SFF-8654 8x (SlimSAS 8i), 74pin, Low Profile (approximately 6.5mm high) |
| Device end : |
8 x SATA 7pin (data), capable of straight head/90 ° bend |
| length |
0.5m/0.7m/0.8m/1m
|
| Controller |
Lack |
| Systems Interface Type |
SAS 4.0/PCIe 4.0 passive conversion cable, single port SlimSAS divided into 8 SATA channels |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
