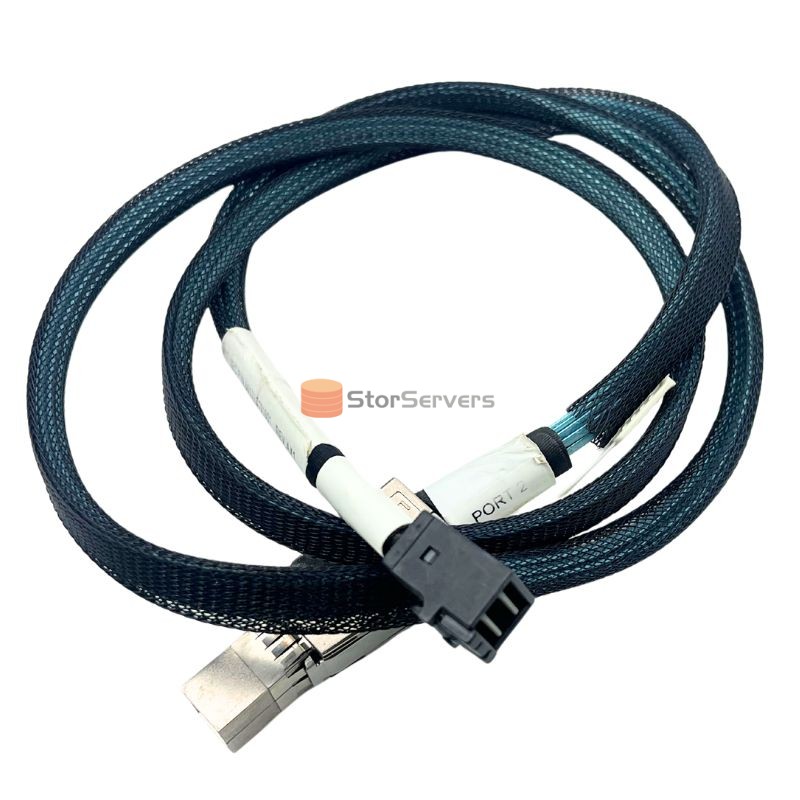

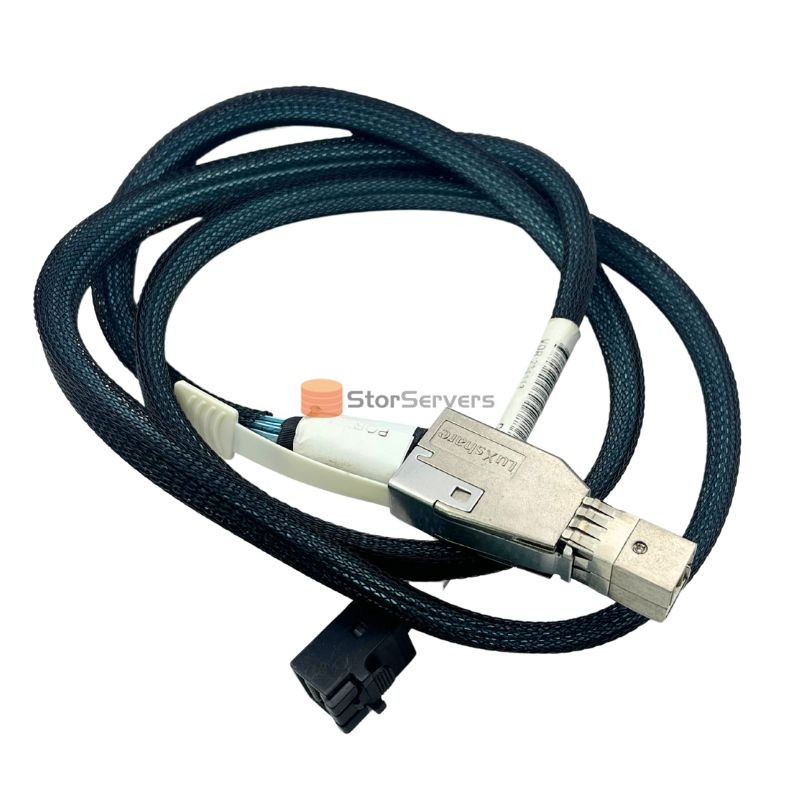

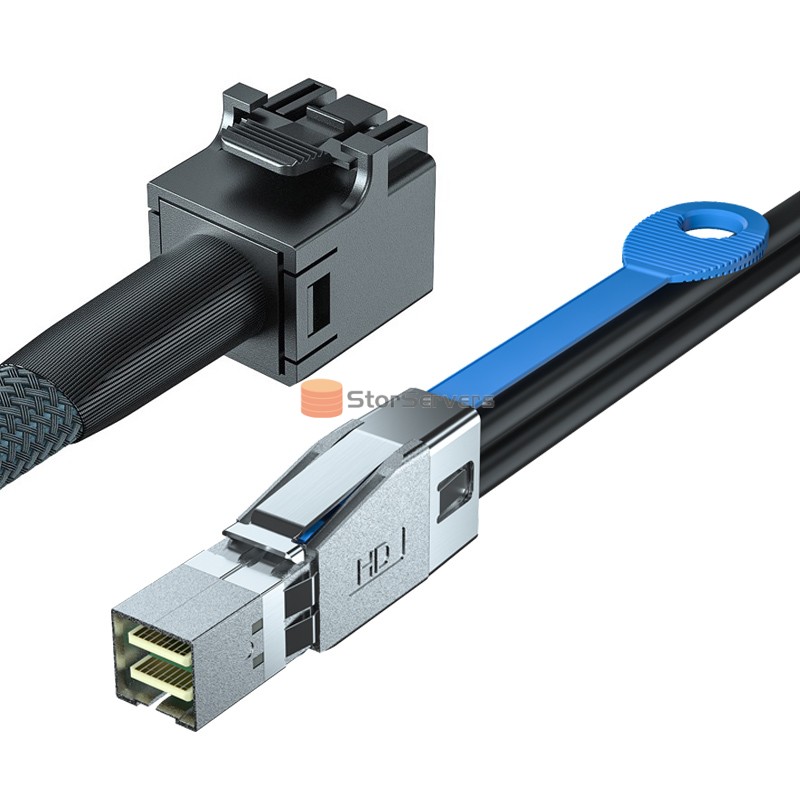

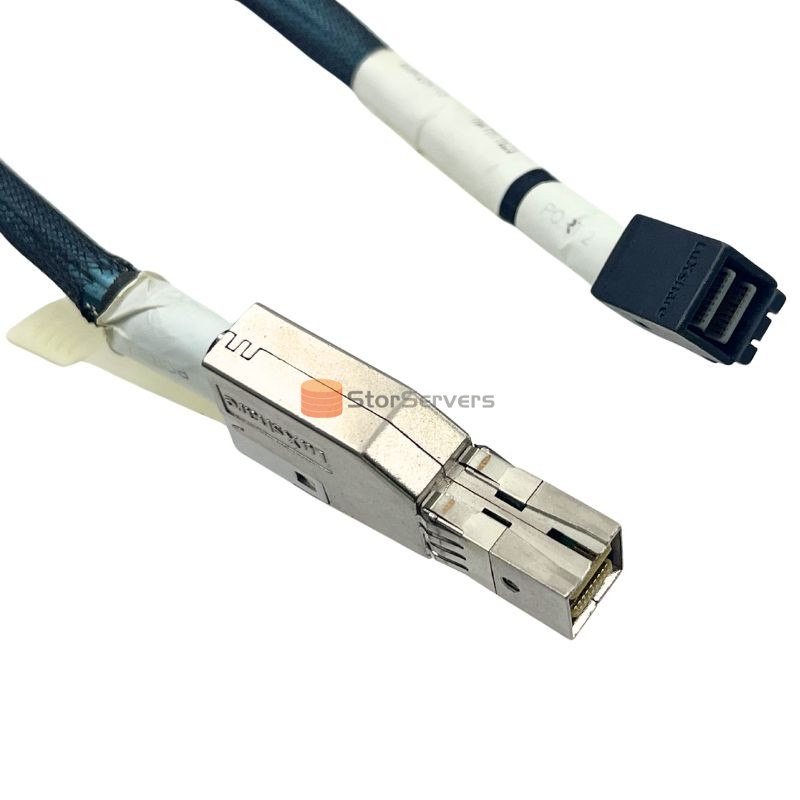

Conversion Line SFF 8644 to SFF 8643
Applications
1、 Interface definition: Mini SAS HD external: 36 pins, metal shielding shell+lock buckle. Mini SAS HD internal: 36 pins, plastic casing. 2、 Electrical and Speed: Protocol: SAS 3.0 (12 Gb/s), backward compatible with SAS 2.1 (6 Gb/s) and SAS 2.0. Per channel rate: 12 Gb/s (x4 channels, total bandwidth 48 Gb/s). Impedance: 100 Ω± 10% (differential). Wire gauge: 30 AWG (common). Length: 0.5m/1m/2m (passive copper cable, generally ≤ 2m). 3、 Mechanical and Environmental: Pin: 36 pins on both ends (x4 channels). Insertion and extraction force: maximum 100 N; release force ≥ 50 N. Rated voltage: 30 V DC; Rated current: 0.5 A per pin. Temperature: 0 ° C~+55 ° C (commercial). Certification: RoHS, REACH. 4、 Typical use: Connect an external SFF-8644 port HBA (such as 9300-8e) to an internal SFF-8643 backplane/hard drive. External JBOD/storage cabinet or internal high-density disk expansion for servers.
Key Features
- Mini SAS HD external to internal conversion
- Mini SAS HD external: 36 pin, metal shielding shell+lock buckle
- Mini SAS HD internal: 36 pins, plastic casing
- Protocol: SAS 3.0 (12 Gb/s), backward compatible with SAS 2.1 (6 Gb/s), SAS 2.0
- Per channel rate: 12 Gb/s (x4 channels, total bandwidth 48 Gb/s)
- Certification: RoHS, REACH
Specification
| Model |
SFF 8644 to SFF 8643 |
| Mini SAS HD external |
36 pin, metal shielding shell+lock buckle |
| Mini SAS HD internal |
36 pins, plastic casing |
| length |
0.5m/1m/2m
|
| Controller |
Lack |
| Systems Interface Type |
Mini SAS HD external to internal conversion |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About US
About us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
-
-
High Quality
Good quality control System,competitive cost control system.
-
Low MOQ
Large production capacity with lowest MOQ.
-
-
-
Shipping & Packing
- Packing: standard export packing or customized packing
- Shipping Ways:
By express (3-7 days via DHL, UPS, TNT, FEDEX; 5-10 day Via EMS)
By air or sea or combined tranportation
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for warranty free.
