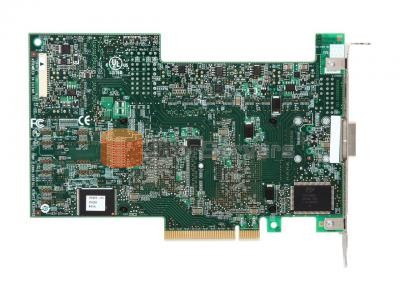

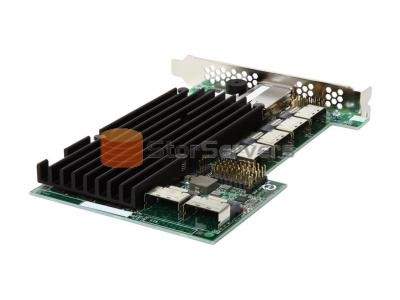

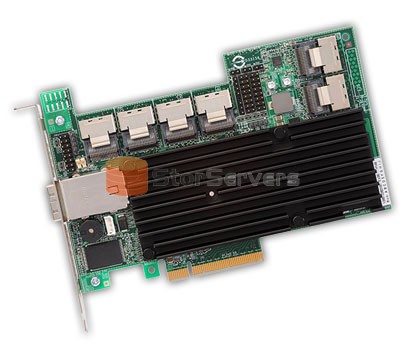

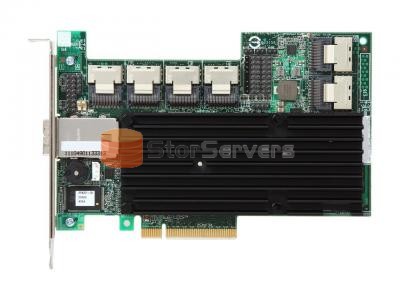

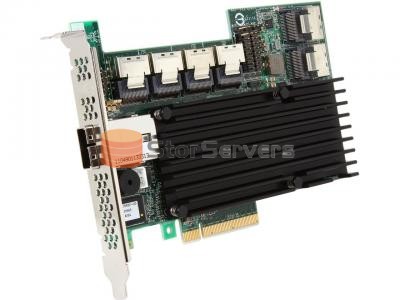

SAS SATA RAID controller 9750-24i4e LSI00253
Applications
LSI 3ware SATA+SAS RAID controllers provide a new level of reliability, availability, and performance to businesses that are facing storage challenges, particularly in sequential I/O intensive and multi-stream environments. This 3ware controller supports both internal drive storage and external JBOD expansion, while providing a higher standard of data protection and performance with the latest in LSI RAID-on-Chip (ROC) technology. Using the external SAS ports, multiple JBODs can be connected to a server, delivering a scalable and affordable solution for growing storage requirements.Offering data transfer rates of up to 6Gb/s per port, the latest generation of 3ware SATA+SAS controllers provide many new features while also ensuring investment protection for existing SATA and SAS implementations. LSI drives unprecedented power in multi-stream RAID environments where performance, redundancy, and data protection are most important.
Key Features
• 24 internal+4 external 6Gb/s SATA+SAS ports
• Six Mini SAS internal connectors (SFF8087)，1 Mini SAS external connector (SFF8088)
• RAID levels 0, 1, 5, 6, 10, 50, and single disk
• LSISAS2108 6Gb/s on-chip RAID -800MHz PowerPC
• 512MB 800MHz DDRII cache
Specification
| Model |
9750-24i4e |
| Adapter Type |
SATA+SAS RAID |
| Storage Controller |
LSI00253 |
| Connectors |
Six Mini SAS SFF8087 internal connectors，1 Mini SAS SFF8088 external connector |
| PCIe Host Interface |
PCIe 2.0 x8 |
| RAID Levels |
0, 1, 5, 6, 10, 50, and single disk |
Form Factor
|
Full height 6.6 "x 4.376"
|
Ports
|
28 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About US
About us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
-
-
High Quality
Good quality control System,competitive cost control system.
-
Low MOQ
Large production capacity with lowest MOQ.
-
-
-
Shipping & Packing
- Packing: standard export packing or customized packing
- Shipping Ways:
By express (3-7 days via DHL, UPS, TNT, FEDEX; 5-10 day Via EMS)
By air or sea or combined tranportation
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for warranty free.
