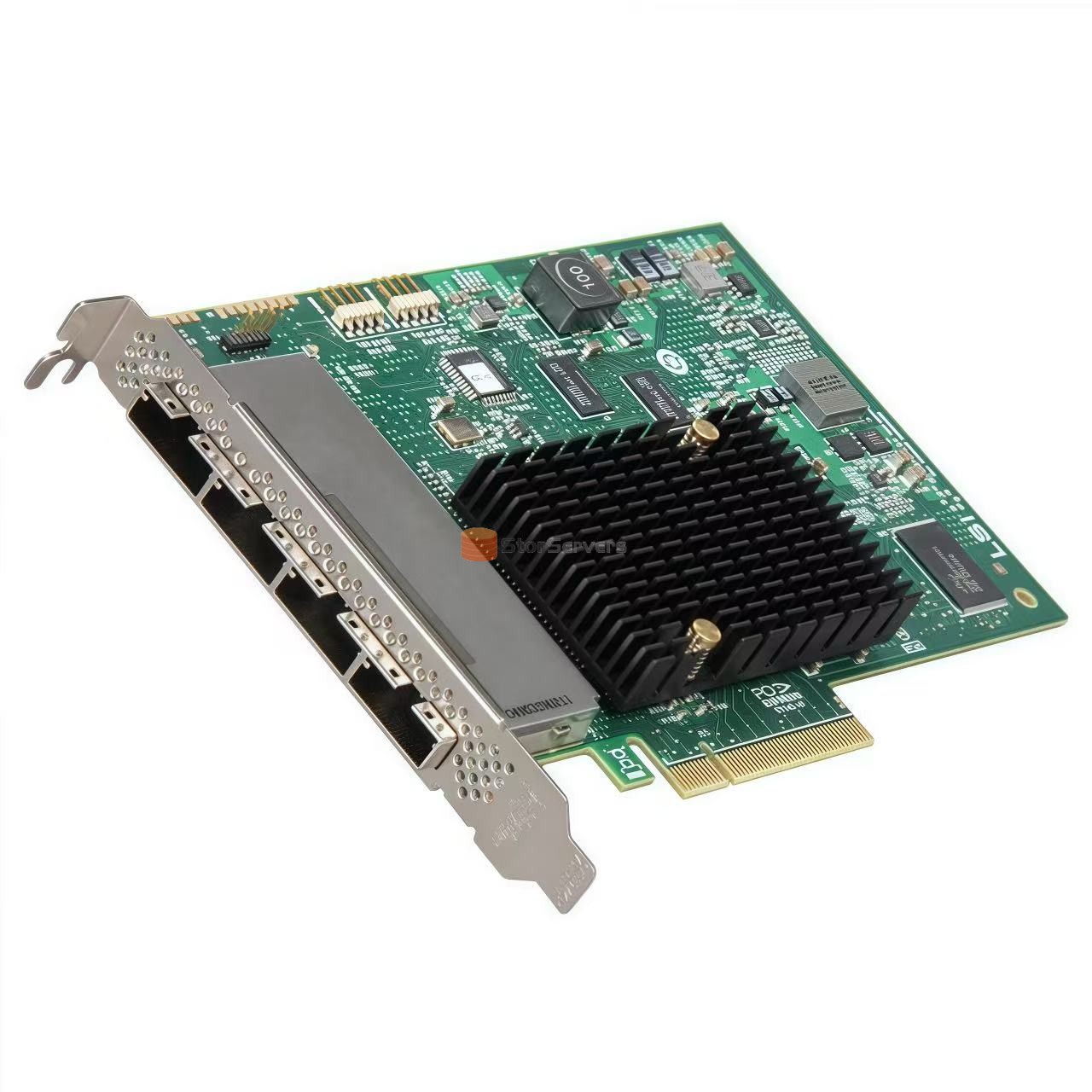

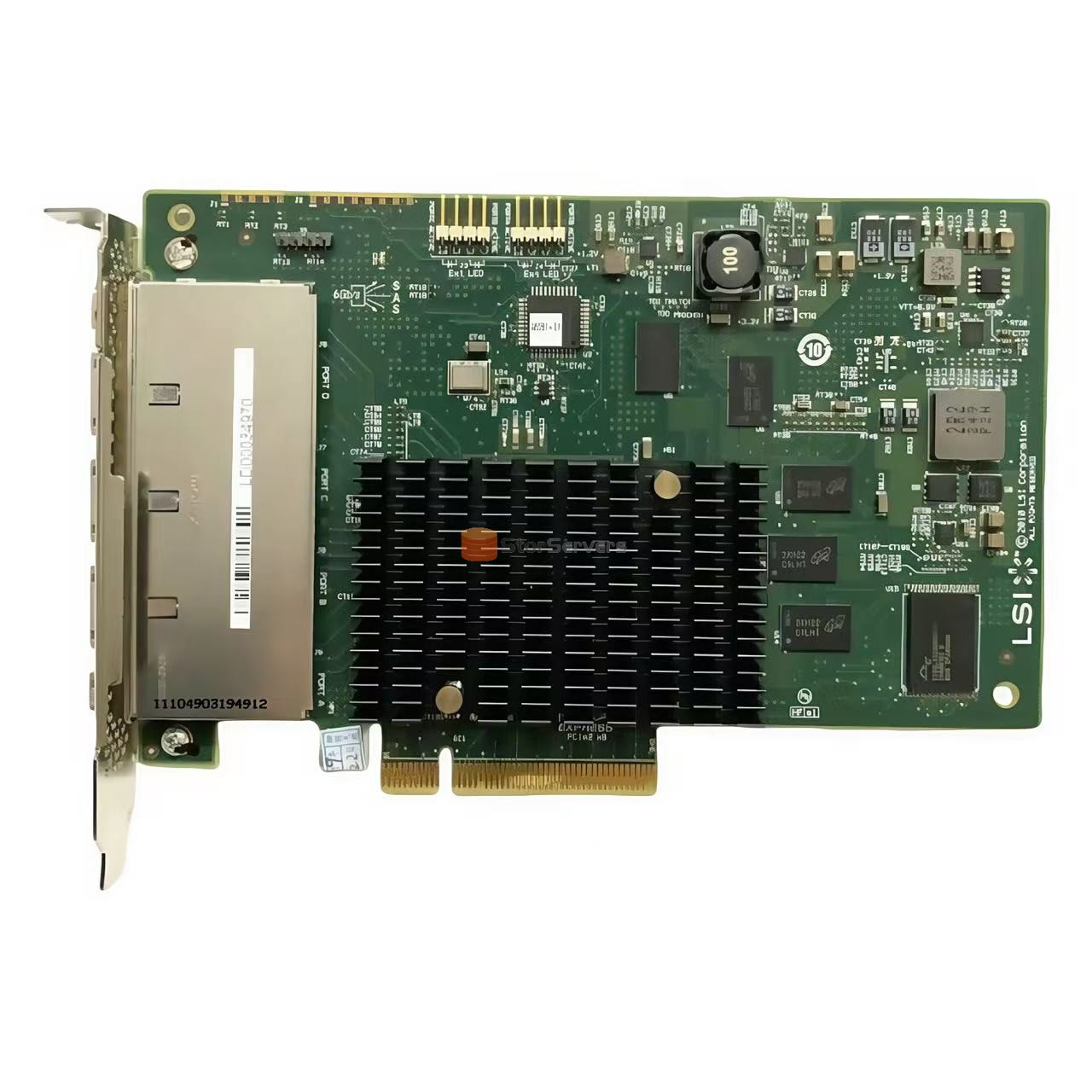

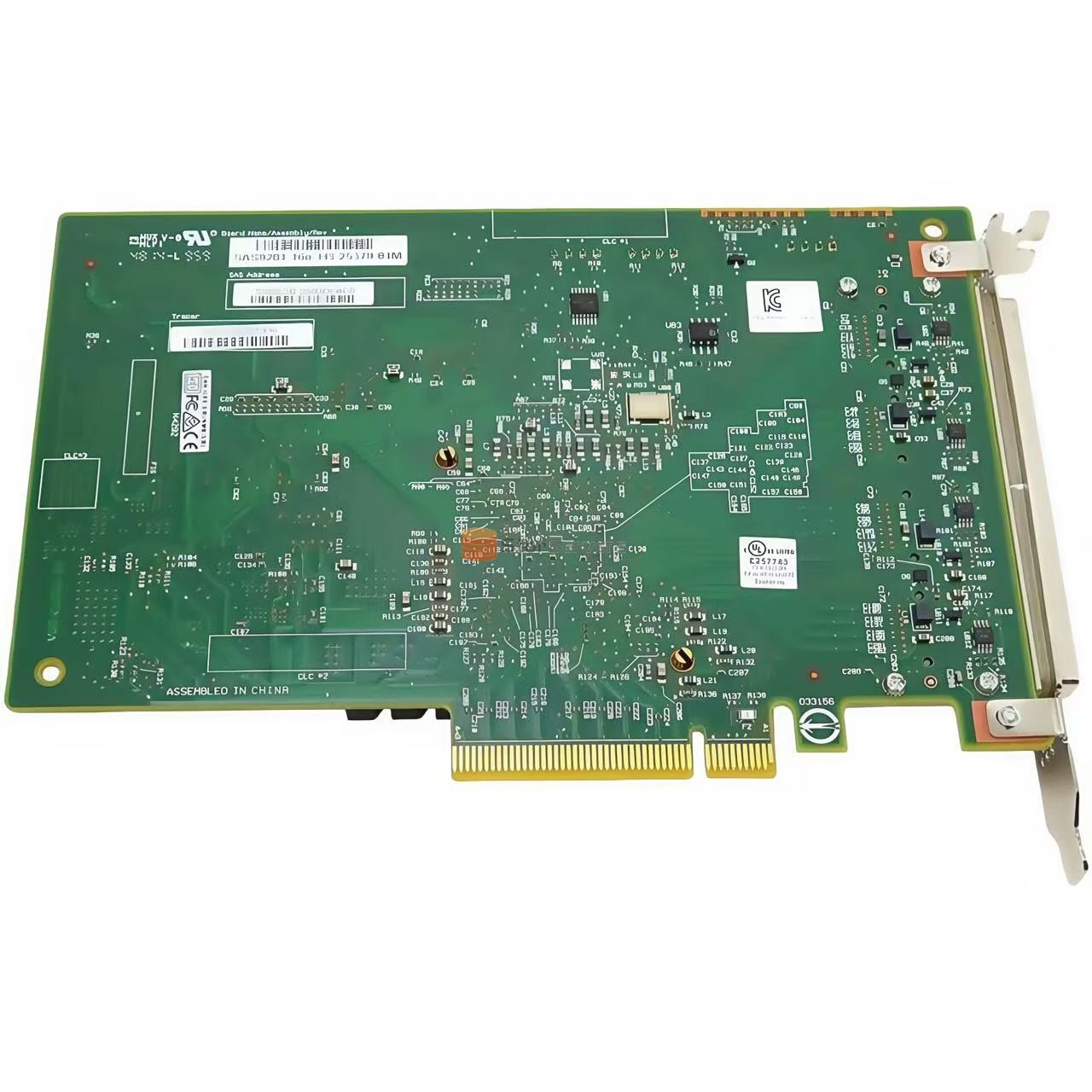

9201-16e LSI00276 SAS/SATA 6Gb/s HBA PCIe 2.0 x8
Applications
The LSI SAS 9201-16e four port host bus adapter provides maximum connectivity and performance for external JBOD and external RAID chassis. LSI SAS 9201-16e provides 16 channel 6Gb/s SAS connectivity to 8-channel PCI Express 2.0. The performance is based on the LSISAS2116 IO controller, which highly integrates the latest enhanced features of PCI Express and SAS technology. HBA supports up to 512 SAS or SATA devices.
The LSI SAS 9201-16e features four (x4) external mini SAS connectors (SFF8088), supporting solutions that offer 1.5, 3, and 6Gb/s SAS and SATA data transfer rates per channel through automatic speed negotiation, achieving over 430000 IOP. Enhanced features include the T-10 protection information model for early detection and recovery of data corruption, as well as the spread spectrum clock (SSC) for minimizing EMI.
Key Features
- 16 external 6Gb/s SAS+SATA ports
- 8 channels, PCI Express 2.0
- Standard height and external dimensions

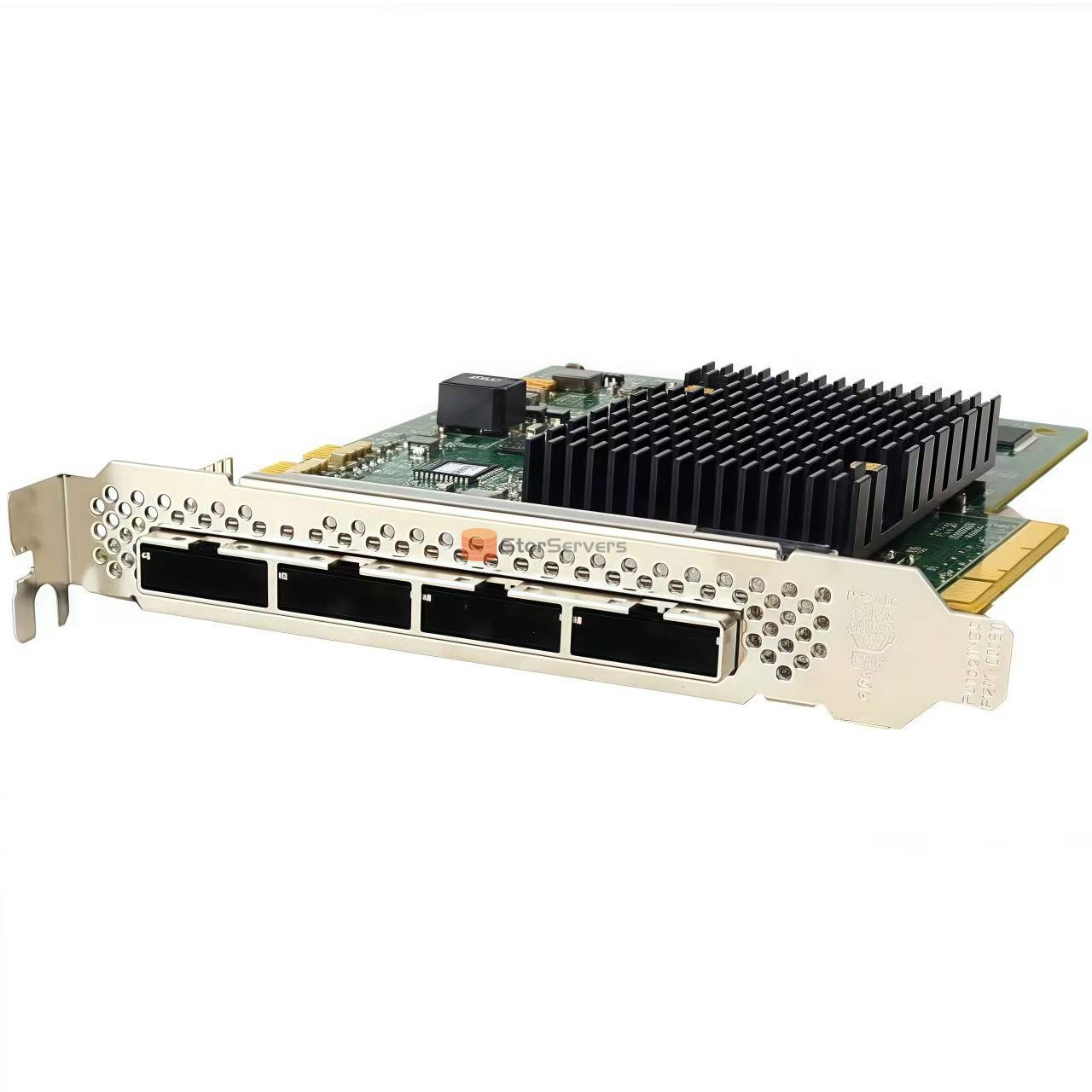

- Four x4 external mini SAS connectors (SFF8088)
- LSISAS2008 6Gb/s SAS+SATA Controller
- Supports up to 512 SAS or SATA terminal devices
- Supports SSD, HDD, and tape drives
Specification
| Model |
9201-16e |
| Form factor |
Full height half length |
| Host Connector |
PCIe 2.0 x8 |
| Port interface |
6Gb SAS |
| Number of ports |
16 |
Port connectors
|
Four x4 external mini SAS connectors (SFF8088) |
Drive interface
|
SAS/SATA |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
